Installation Guide: Zeiss EyeMag Pro

Step 1: Install the bracket to Zeiss loupes.

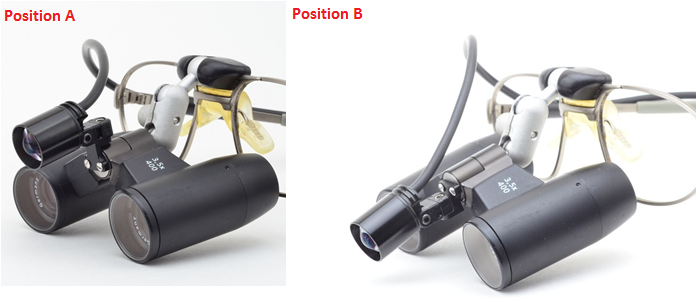

A) Alight the bracket to loupes in Position A or Position B.
B) Using provided screws, attach the bracket to the two screw holes on loupes.
C) Attach headlight to bracket.

Step 2: Headlight Adjustment

A) Draw a circle 3" in diameter. Dim headlight to minimum.
B) While looking at the circle through the loupes, rotate and tilt the headlight to aim at the circle.
C) Use the provided allen wrench to tighten or loosen headlight as needed.
