Installation Guide: DFV Nike Skylon Ace

Step 1: Attach the T-Bracket to frame (skip to Step 2 if "T-Mount" pre-installed by DFV)

A) Remove the existing cover cap from nose bridge (Picture A)
B) Attach the T-Bracket in place of the cover cap using the provided screws (Picture B)

Step 2: Attach the mount to T-Bracket

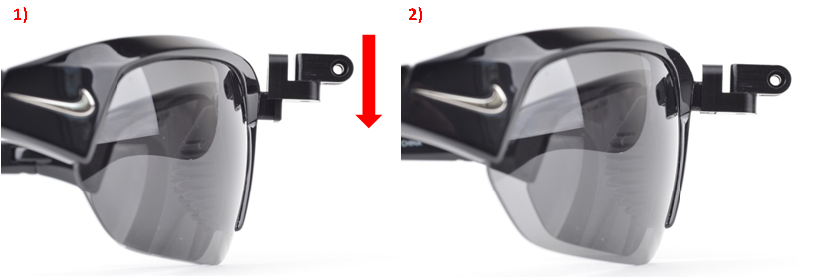

A) Slide mount over T-Bracket as show in Pictures 1 and 2

Step 3: Headlight Adjustment

A) Draw a circle of 3 " in diameter on this page. Dim the headlight to minimum.
B) While looking at the circle thru the loupes, rotate and tilt the headlight to aim at the circle.
C) Use the Allen wrench to tighten or loosen the headlight if needed.
